Linear guide of the portable sawmill, better stability of rising and falling.
Automatic locking of the timber clamping device so the portable sawmill has no need for manual fixing.

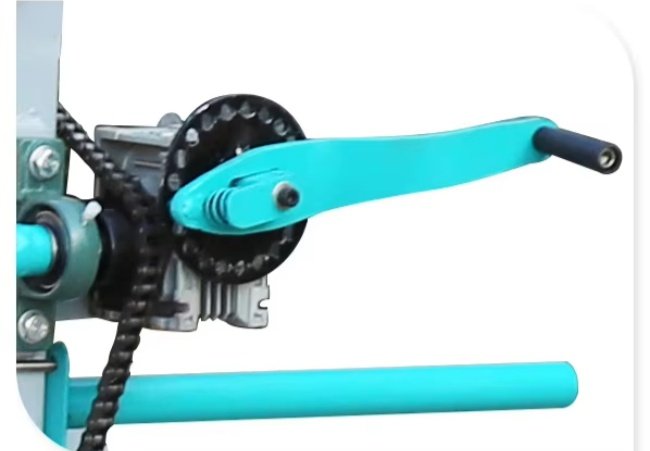

Manual lifting and manual walking of the portable sawmill,it can also be changed to electric walking, and the sawing size can be set electrically.
Portable sawmill can fix the four screws of the saw wheel and adjust the saw blade to run inside and out.
Portable sawmill uses 35-wide carbide saw blades or 34-wide bi-metal saw blades.
15 cm above the saw blade the portable sawmill so it has large operating space.

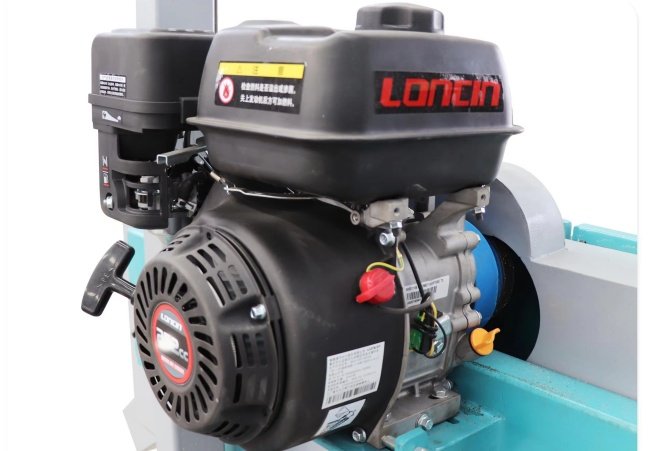

Gasoline engines the portable sawmill can be selected including Loncin, Lifan, Briggs & Stratton.
The gasoline engine the portable sawmill is equipped with a clutch to better protect the engine.
Multiple engine of the engine of the portable sawmill can be chosen, such as gasoline engine, diesel engine, and electric engine.

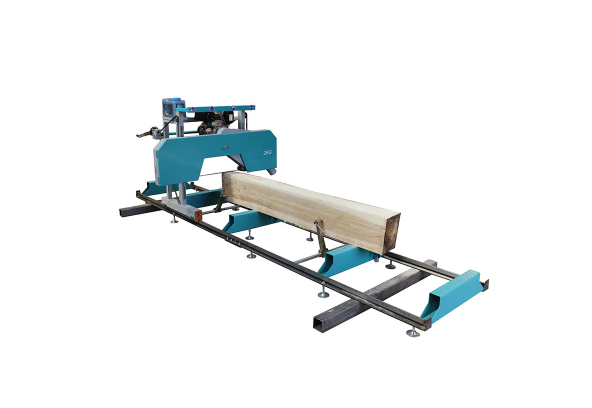

Portable sawmill is one of the horizontal band saw, compared with the normal types, this one is lighter and space-saving. It is suitable for cutting smaller size of wood. You can choose the size of the machine according to the length and diameter of your wood. Using linear guide, the portable sawmill works more stable and safe.Automatic locking of the timber clamping device, you would be no need for manual fixing.
SW26/31/36 Model | SW26/31/36G | SW26/31/36E |
Power | Gasoline Engine 9/15 PH (LONCIN, Manual start) | Electric Motor 7.5/11KW |
Max Sawing Wood Diameter | 660/780/900mm(26”) | |
Standard Sawing Wood Length | 3000/4000mm(118”) | |
Saw Wheel Diameter | 480/60mm(18.9”) | |
Blade size | 3750 x 35x 0.9 mm(148”*1.37”*0.035”) | |
Machine Length | 4000/5000mm(157”) | |
Weight | 500KG | |
Packing | 2200mm*1000mm*1600mm | |
You can customize the color of the machine or change the the engine kinds according to your need. Also, you can extend the rail length, add the automatic return hook, which is to prevent the wood from returning.
Central wheel design to make the blade stable. Wood skid to prevent blade from fluctuating up and down. Besides,the wood skid can sweep the wood dust on the blade.It adds the hand wheel to tighten the blade which can make the blade not easy to move.

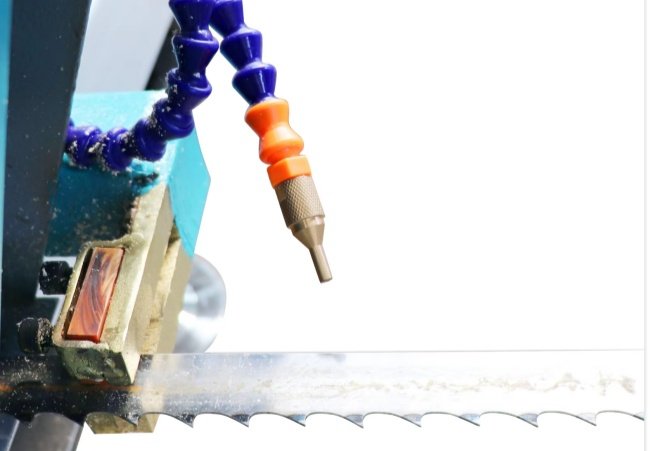

This machine use carbide band saw blade. It adds the water spray system to cool the blade and clean the wood dust. On the cutting head of the horizontal band saw,it has a sawdust outlet, it can sweep most of the sawdust after sawing.
If you have any questions, please leave a message, we will reply as soon as possible.
