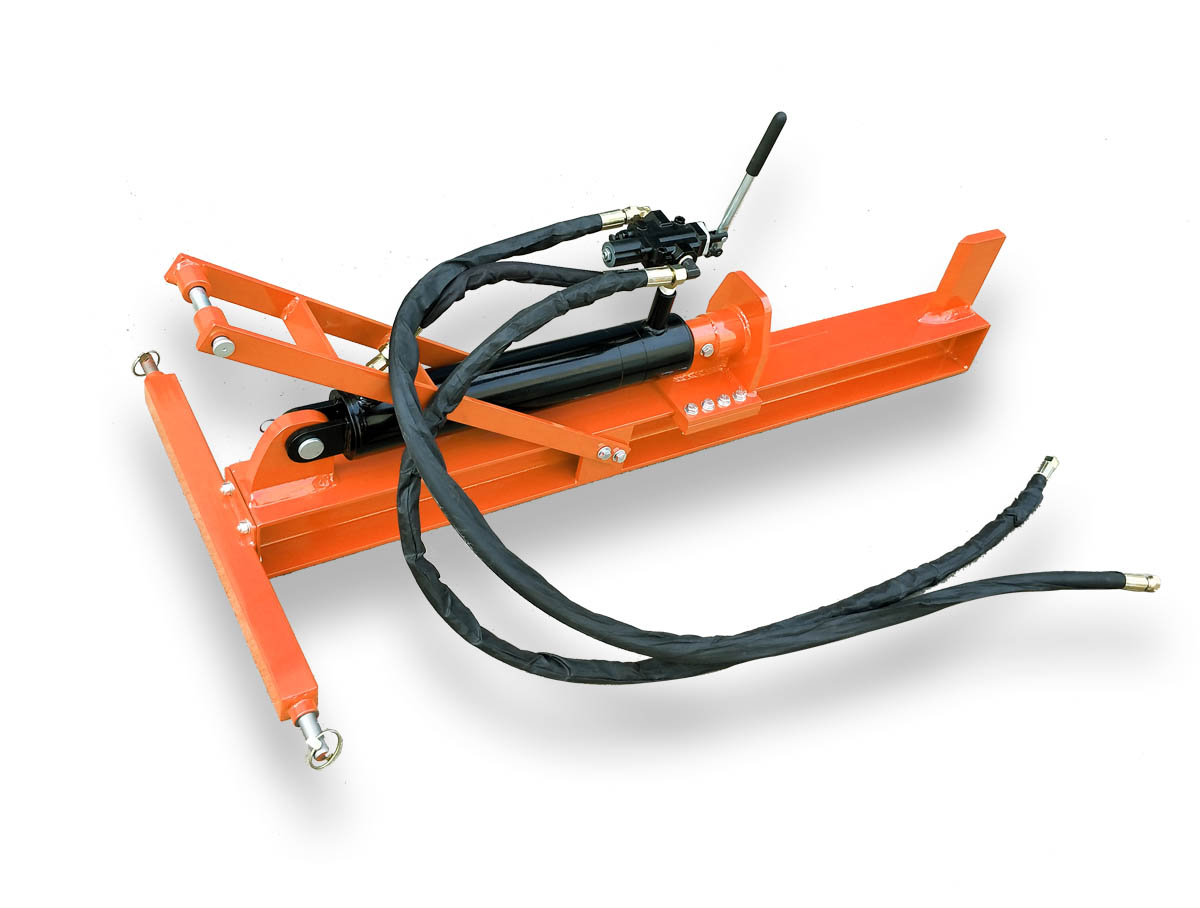

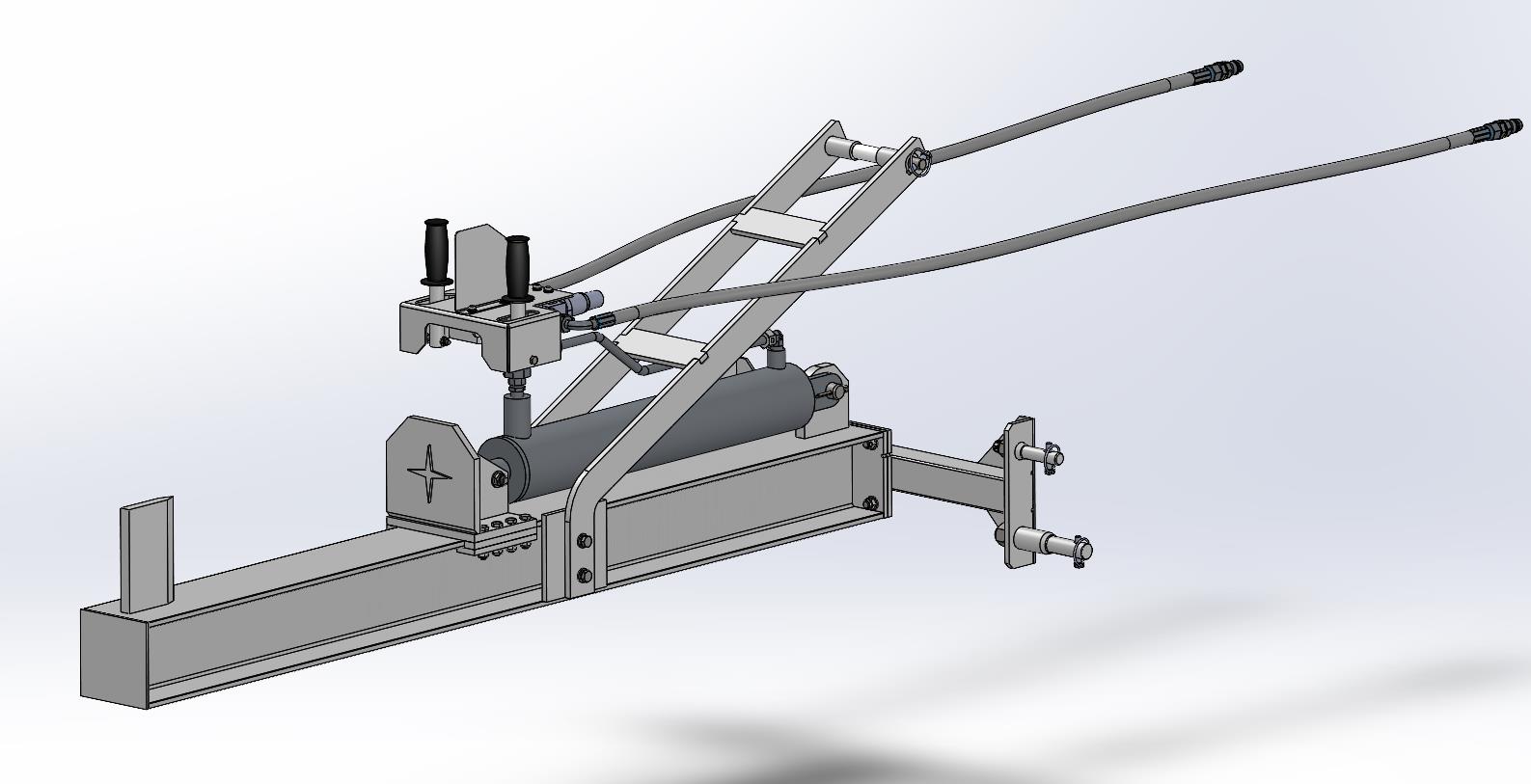

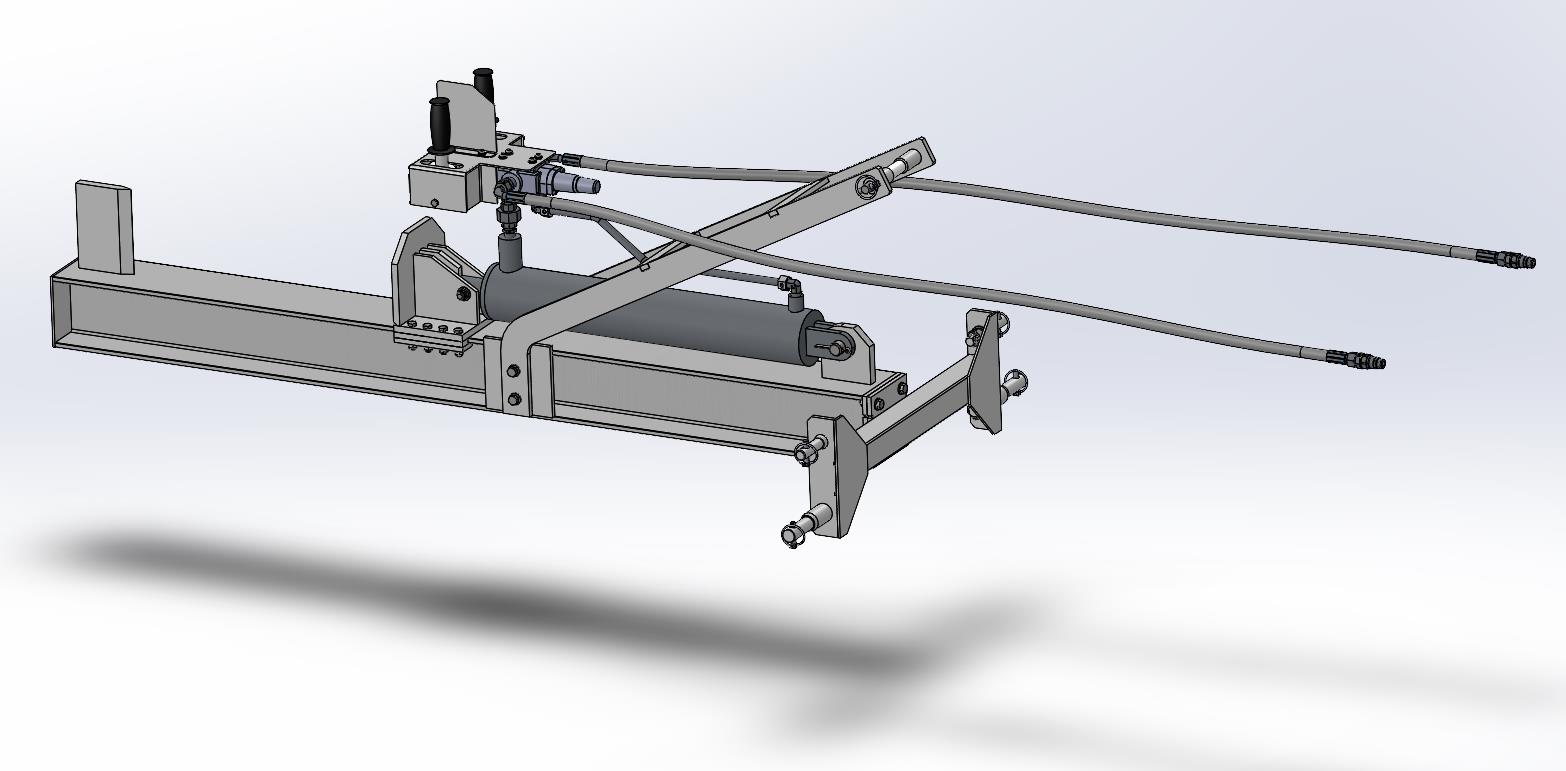

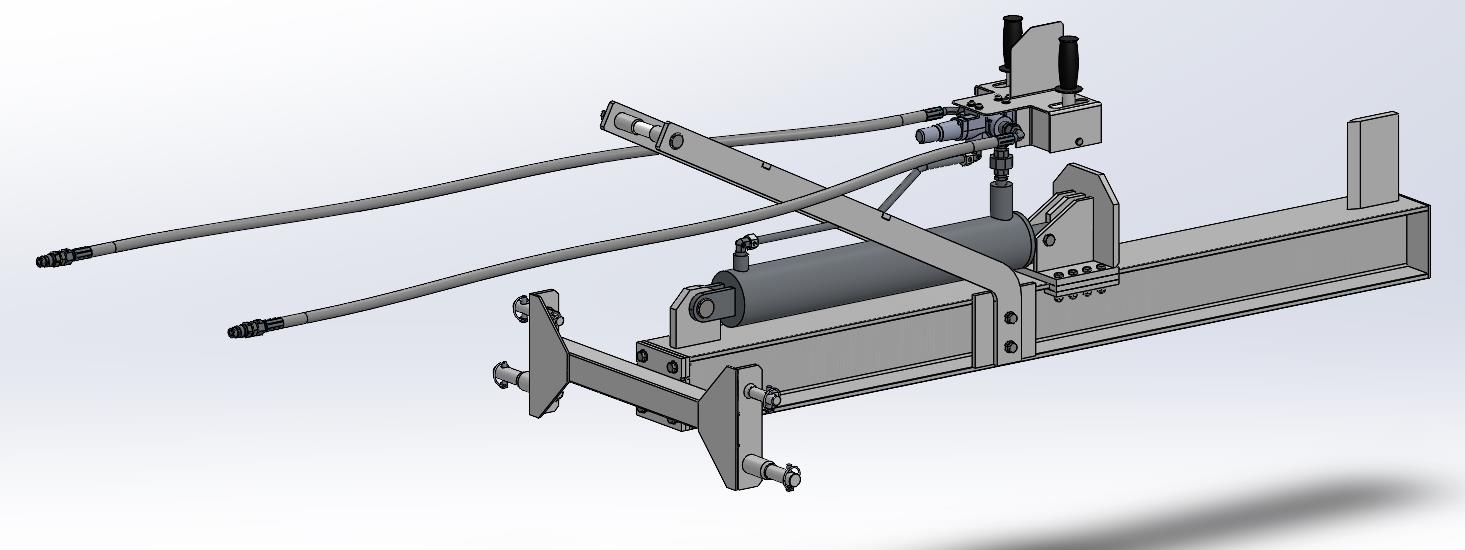

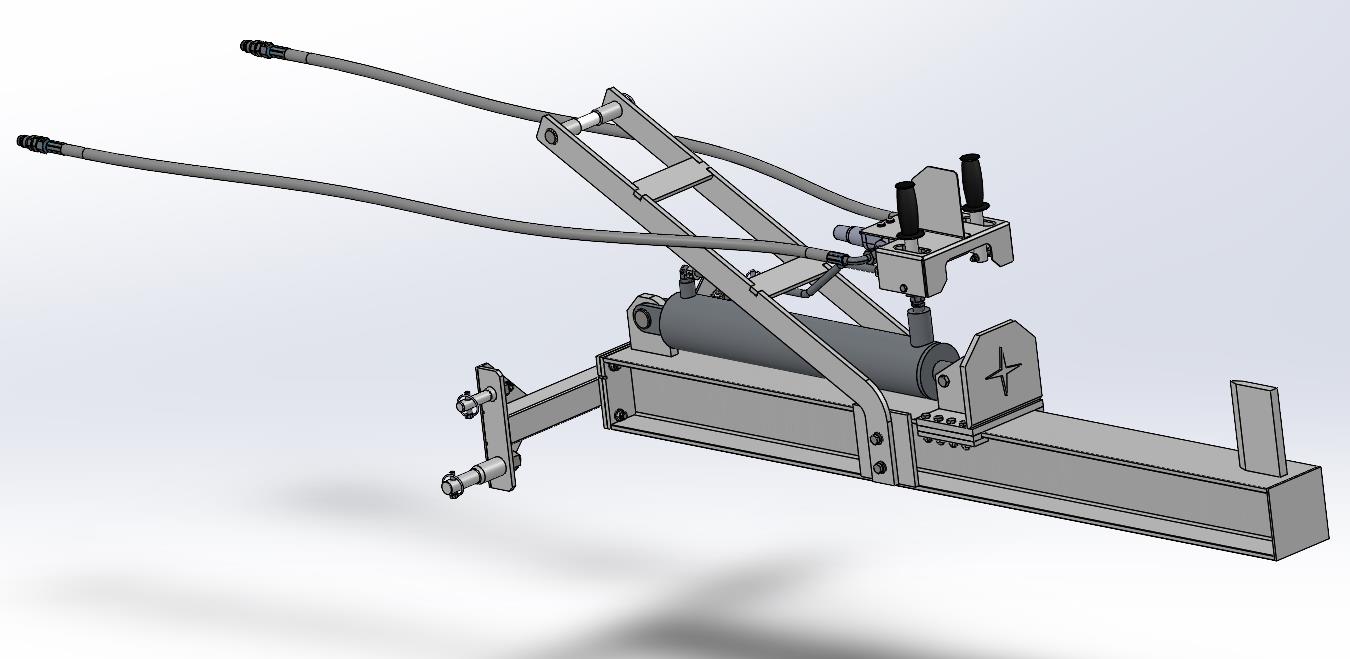

Tractor Log Splitter TWS

Tractor Log Splitter TWS 1
Tractor Log Splitter TWS 5
Tractor Log Splitter TWS 4
Tractor Log Splitter TWS 3
Tractor Log Splitter TWS 2
Tractor Log Splitter TWS 1
Tractor Log Splitter TWS 5
Tractor Log Splitter TWS 4
Tractor Log Splitter TWS 3
Tractor Log Splitter TWS 2

Tractor Log Splitter TWS

Inquire Now
Add To Cart

Product Description

ModelTWS15TWS18TWS22TWS28
Split Force15t18t22t28t
Log Capacity630mm630mm630mm630mm
Max working pressure25MPa25MPa25MPa25MPa
Cylinder inner diameter3Inch3.5Inch4Inch4.5Inch
Hydraulic Rod Diameter44.5mm44.5mm44.5mm44.5mm
Hydraulic Cylinder Stroke600mm600mm600mm600mm
Cylinder Cycle Time9S12S15S18S
Size of cleaver180mm180mm180mm180mm
Tractor-mountedCAT 1，CAT 2CAT 1，CAT 2CAT 1，CAT 2CAT 1，CAT 2
Max Flow41.6L/min41.6L/min41.6L/min41.6L/min
Overall dimensions1920*985*705mm1920*985*705mm1920*985*705mm1920*985*705mm
