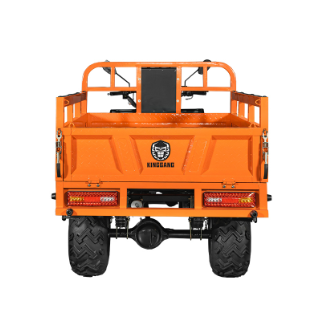

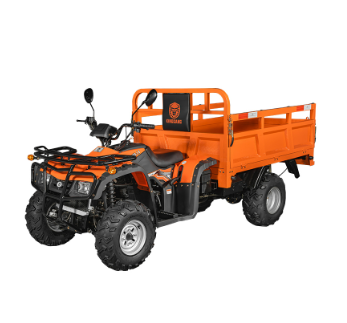

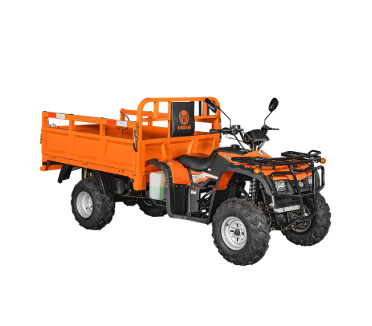

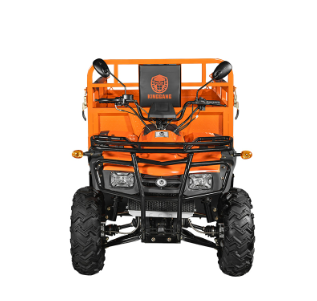

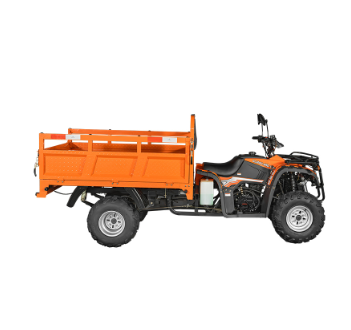

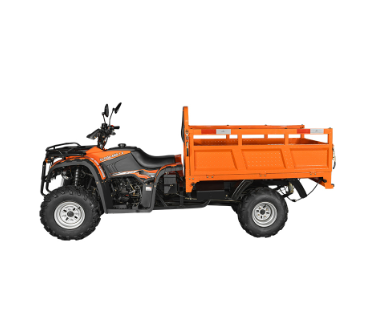

| Model | DL300U-4WD-1.6 | |
| Engine | 174MN-4A (CG300) | |
| Engine Type | Single cylinder, 4-stroke, water-cooled, inclined, lower cam | |
| Displacement | 275 cc | |
| Bore × Stroke | 74.0×64.0 mm | |
| Compression Ratio | 10.0: 1 | |
| Max. Power and Rev | 12.5 kW (6500r/min) | |
| Max. Torque and Rev | 20 N·m (4500r/min) | |
| Min. Fuel Consumption Rate | 340 g/kW · h | |
| Max.Speed | ≤65 km/h | |
| Gradeability | ≤25° | |
| Starting Method | Electric start | |
| Transmission | Shaft | |
| Brake Method/Type | Front: hand/Disc , Rear:foot/drum | |
| Tire | Tubeless Tire, Front: 22*8-10 , Rear: 22*10-10 | |
| Wheelbase | 2000±10 mm | |
| Min. Ground Clearance | 170 mm ± 10 mm | |
| Fuel Tank Capacity | 9.5 L | |
| Rated Load Weight | 500 kgs | |
| L×W×H (Cargo) | 1600×1200×500 (±50) mm | |
| L×W×H (Farm ATV) | 3130×1200×1400 (±50) mm | |
| Container Loading Quantity | 20GP: 8pcs , 40HQ: 22pcs | |
