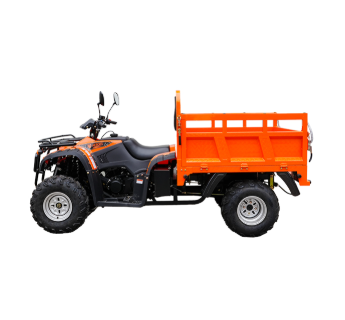

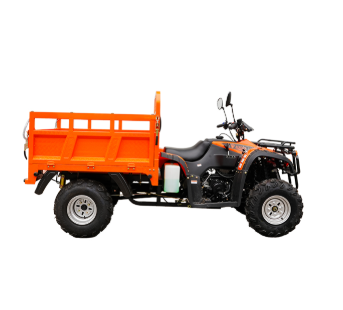

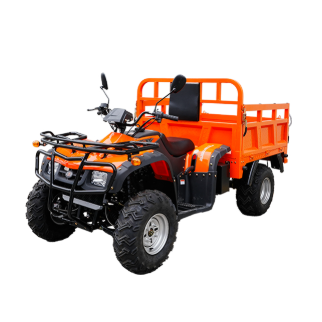

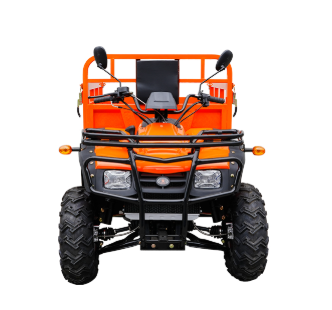

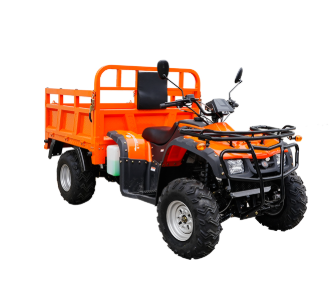

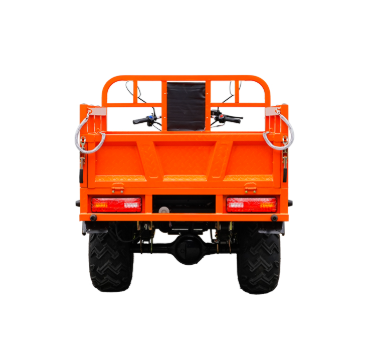

| Model | DL300U-4WD-1.2A | |
| Engine | HWAC320 | |
| Engine Type | Single cylinder, 4-stroke, SOHC, water-cooled, single axis balancing | |
| Displacement | 287.2 cc | |
| Bore × Stroke | 75.0×65.0 mm | |
| Compression Ratio | 10.0: 1 | |
| Max. Power and Rev | 17 kW (6800r/min) | |
| Max. Torque and Rev | 28 N·m (5000r/min) | |
| Min. Fuel Consumption Rate | 340 g/kW · h | |
| Max.Speed | ≤60 km/h | |
| Gradeability | ≤25° | |
| Starting Method | Electric start + manual recoil start | |
| Transmission | Shaft | |
| Brake Method/Type | Front: hand/Disc , Rear:foot/ drum | |
| Tire | Tubeless Tire, Front: 22*8-10 , Rear: 22*11-10 | |
| Wheelbase | 1815±50 mm | |
| Min. Ground Clearance | 170 mm ± 10 mm | |
| Fuel Tank Capacity | 9.5 L | |
| Rated Load Weight | 400 kgs | |
| L×W×H (Cargo) | 1200×1200×500 (±50) mm | |
| L×W×H (Farm ATV) | (2730×1200×1400) ±50mm | |
| Container Loading Quantity | 20GP: 8pcs , 40HQ: 22pcs | |
