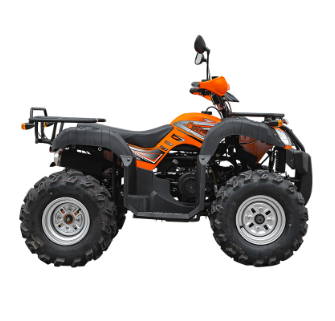

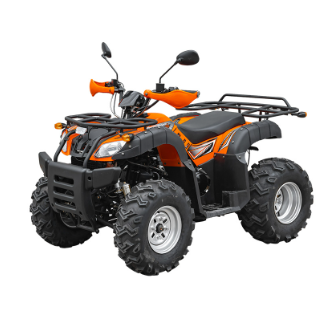

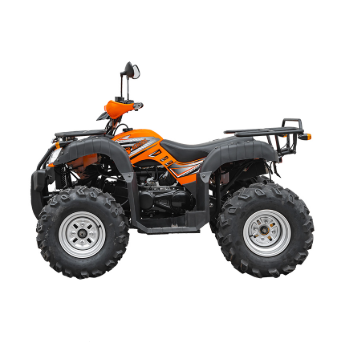

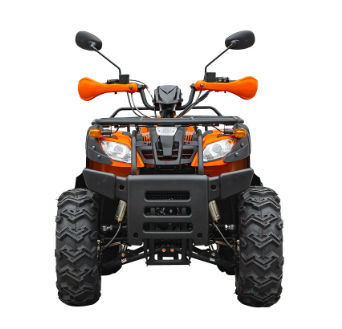

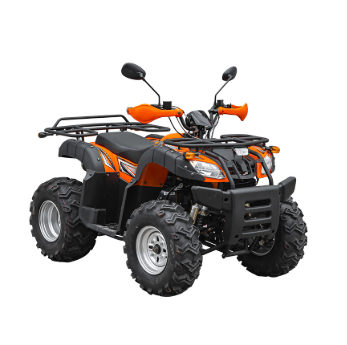

KDL200AU

Product details

Model DL200AU Engine GY6-200 Engine Type Single cylinder, 4-stroke Displacement 177 cc Bore × Stroke 62.5×57.8 mm Compression Ratio 10.0: 1 Max. Power and Rev 7 kW (7000r/min) Max. Torque and Rev 13 N·m (6000r/min) Max.Speed 60 km/h Gradeability ≤25° Starting Method Electric start Gear Shaft Mode CVT , D-N-R Transmission Shaft , Rear-wheel drive Brake Type Front: Disc , Rear: Disc Tire Tubeless Tire, Front: 19*7-8 , Rear: 18*9.5-8 Wheelbase 1040±50 mm Min. Ground Clearance 150 mm ± 10 mm Fuel Tank Capacity 6.6 L L×W×H (1730×1010×1160) ±50 mm Container Loading Quantity 20GP: 20pcs , 40HQ: 52pcs
