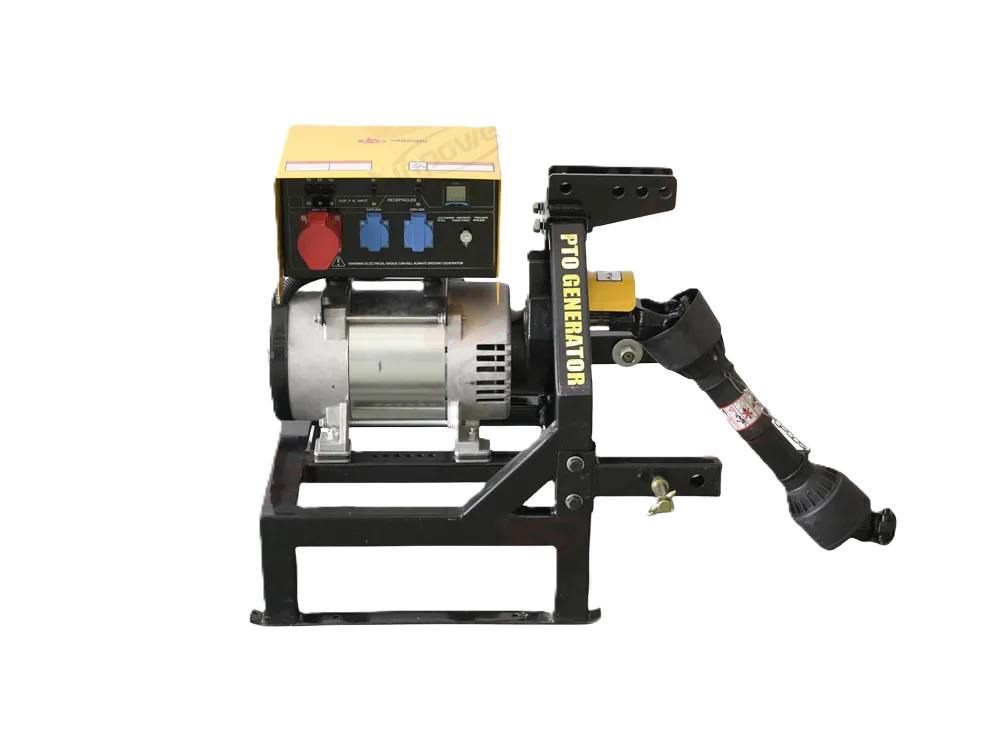

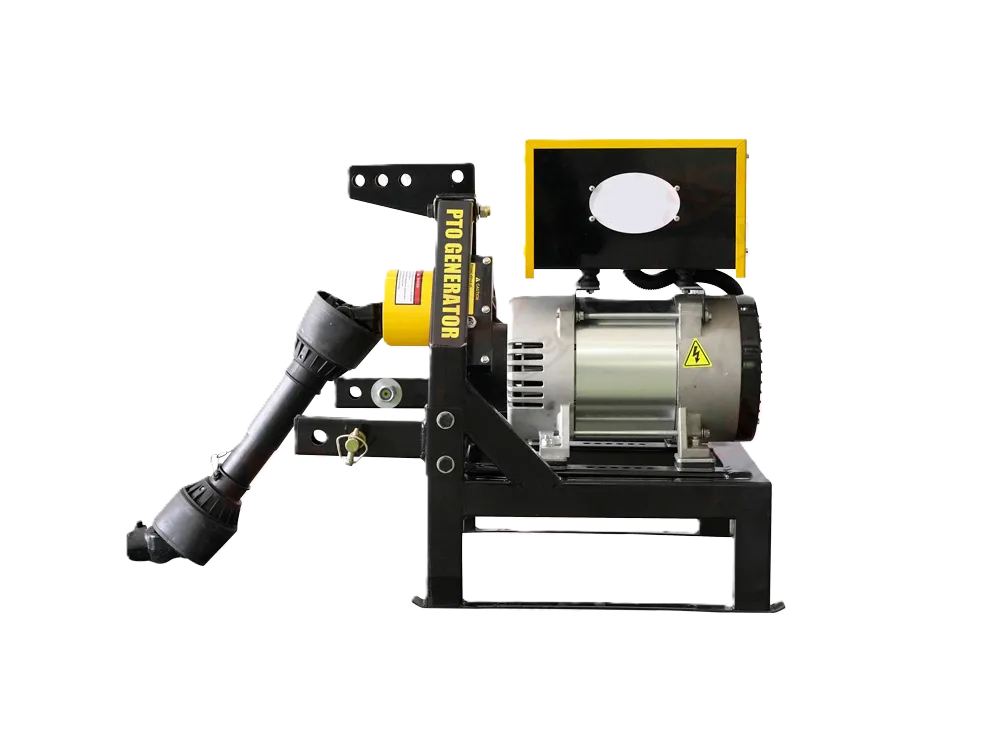

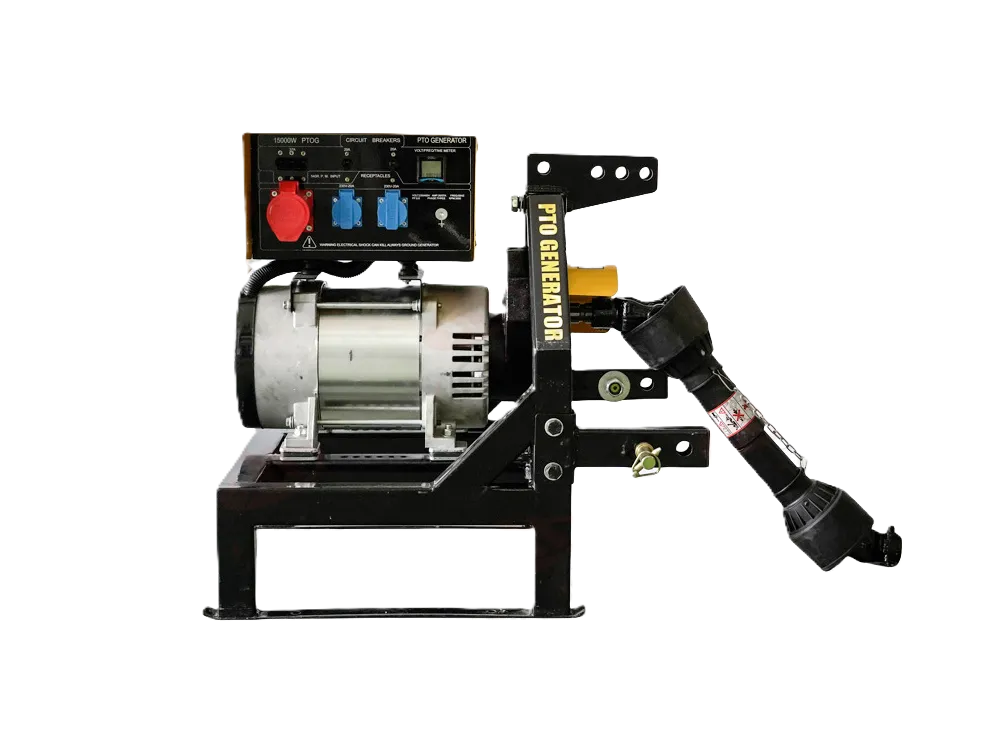

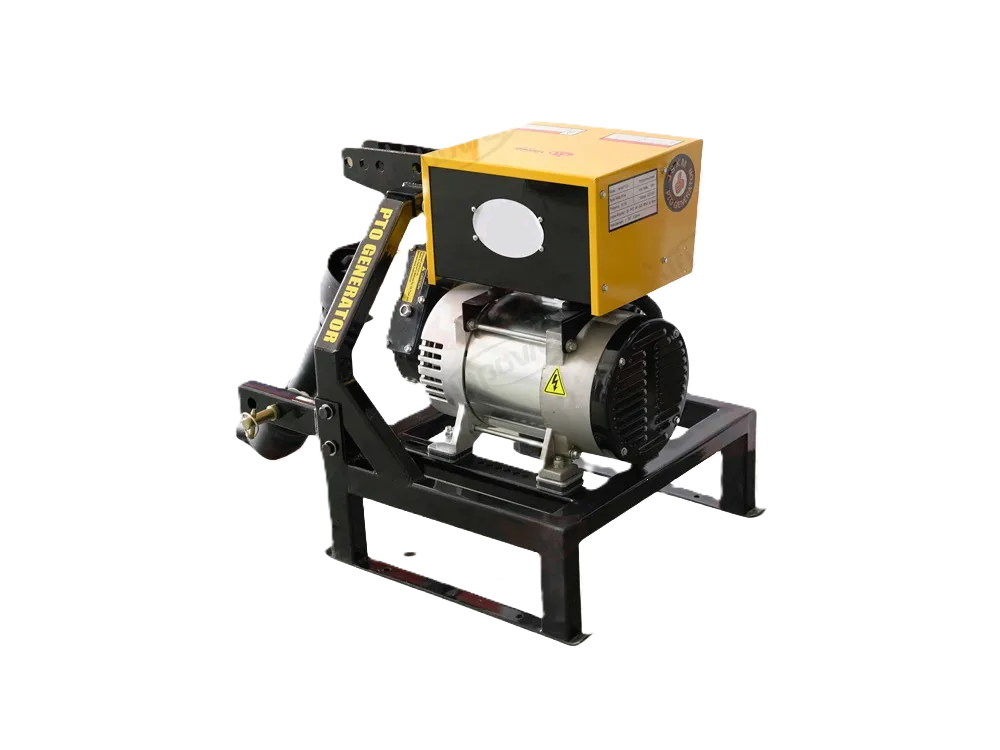

Tractor PTO Generator

规格参数Specification parameters

发电机型号    PTO-12000                                  Generator Model    PTO-12000

额定连续功率    12000瓦                                   Rated Cont. Wattage    12,000 watts

最高功率    16000瓦                                          Max. Wattage    16,000 watts

功率因数    1                                                     Power Factor    1

额定交流电压    120/240                                   Rated AC Volts    120/240

额定负载电流    125/62.5安培                           Rated Load Current    125/62.5 amps

相位    1相                                                        Phase    1-phase

额定频率    60 Hz.                                             Rated Frequency    60 Hz.

所需功率    25马力或更多                                  Power Needed    25 Hp or more

PTO驱动器速度    540转/分                               PTO Drive Speed    540 RPM

PTO轴    1-3/8英寸样条曲线，6样条曲线           PTO Shaft    1-3/8" spline, 6-spline

齿轮箱减速    单级                                             Gearbox Reduction    single stage

PTO轴与旋转场速度的比率    1至6.67                 Ratio PTO Shaft to Revolving Field Speed    1 to 6.67

推荐的齿轮箱油    SAE90齿轮油                         Recommended Gear Box Oil    SAE 90 Gearlube Oil

PTO轴润滑剂    锂基润滑脂                                PTO Shaft Lubricant    Lithium base grease

长度    26英寸(660毫米)                                     Length    26 inches(660mm)

宽度    23.6英寸(600毫来)                                  width    23.6 inches (600mm)

高度    31.5英寸(800毫米)                                  Height    31.5 inches (800mm)

重量    285 Ibs.(128kg)                                      Weight    285 lbs.(128kg)

✪Product introduction:
The tractor PTO Generator is a power generation device driven by the PTO (power output shaft) of the tractor. It converts the mechanical power of the tractor into electrical energy and is suitable for areas without power supply or places where temporary power supply is required. The Generator Set can provide stable power support for farms, construction sites, remote areas, emergency power supply and other scenarios.
By connecting to the tractor's PTO system, the tractor PTO generator can not only reduce the cost of purchasing a separate power generation device, but also use the power output of the existing tractor to complete the power generation task. The equipment is widely used in agriculture, industry and post-disaster rescue.
✪Main features of tractor PTO generator:
PTO drive system:
The generator is connected through the tractor PTO output shaft and driven by the mechanical power of the tractor. No additional fuel or power support is required, saving energy and fuel expenses.
High-efficiency power generation:
The generator set can convert the mechanical power of the tractor into stable power output through an efficient power generation system. Its output power can be adjusted according to the size and needs of the tractor to adapt to a variety of working environments.
Easy to move:
After the Tractor Pto Generator Set is connected to the tractor, it can be easily moved, which is suitable for application scenarios that require rapid deployment, such as temporary power supply or emergency rescue.
Strong durability:
This generator set usually uses high-strength materials and can work for a long time in harsh environments. It is suitable for places with poor conditions such as agriculture, construction sites, and the field.
Versatility:
In addition to being used for agricultural irrigation, construction sites, and power supply in remote areas, tractor PTO generators are also widely used in emergency power supply, field operations, post-disaster recovery and other occasions, with strong applicability.
High power output:
The power of the tractor PTO generator can be selected according to needs, generally ranging from a few kilowatts to tens of kilowatts, which can meet the power needs of different scales and adapt to a variety of workloads.
Simple operation:
Easy to operate, the generator can be started after connecting the tractor's PTO shaft to quickly provide power to the equipment. No complicated starting procedures are required, and the operator is easy to get started.
Environmental protection and energy saving:
The generator set is powered by the tractor, without the need for additional fuel or power supply, which reduces pollution to the environment while saving energy and costs.
Advantages of tractor PTO generators:
Save energy and fuel costs:
Using the power of the tractor itself to drive the generator, there is no need to use additional fuel or electricity sources, which significantly reduces energy consumption and operating costs.
Improve work efficiency:
By utilizing the power of the tractor, the PTO Generator Set can efficiently provide stable power output to meet long-term and continuous power demand, especially suitable for large agricultural projects or construction sites.
Wide adaptability:
This generator set is not only suitable for agricultural irrigation and farm power supply, but also for a variety of environments such as construction, construction sites and emergency power supply. The wide range of application scenarios meets different power needs.
Ideal choice for areas without power supply:
The tractor PTO generator is an ideal choice for areas without grid access, especially in remote rural areas, construction sites or post-disaster recovery, and can provide a stable power supply.
Simple operation and fast start-up:
The tractor PTO generator set is very easy to operate. Just connect the generator to the PTO shaft of the tractor, start quickly, and put into use quickly.
Strong mobility, suitable for mobile work:
Due to the close connection between the generator and the tractor, the equipment can be easily moved between different working areas as needed, adapting to the working environment that requires high mobility.
High reliability:
The generator set has been carefully designed and uses high-strength and wear-resistant materials. It can maintain high efficiency under long-term high-load operating conditions and reduce failures and downtime.
Environmentally friendly and efficient:
The tractor PTO generator avoids the pollution emissions of traditional generators through optimized design, reduces the negative impact on the environment, and meets environmental protection requirements.
Reduced maintenance costs:
The tractor PTO generator has a simple design and compact structure, with relatively few parts, and daily maintenance and maintenance are relatively convenient, which helps to reduce the cost of maintenance and operation.
✪Summary:
The tractor PTO generator is an efficient, energy-saving and environmentally friendly power solution that uses the tractor's power system to provide power output. It is suitable for a variety of scenarios such as agriculture, construction, and post-disaster rescue. Its high efficiency, easy operation, energy saving and maintenance cost make it an ideal choice for areas with insufficient power supply or temporary power demand.
Summary of main advantages:
Save energy and fuel costs
Efficient and stable power output
Wide range of application scenarios
Simple operation and quick start-up
Strong durability and adaptability to harsh environments
Suitable for remote areas and emergency power supply
High reliability and low maintenance cost
