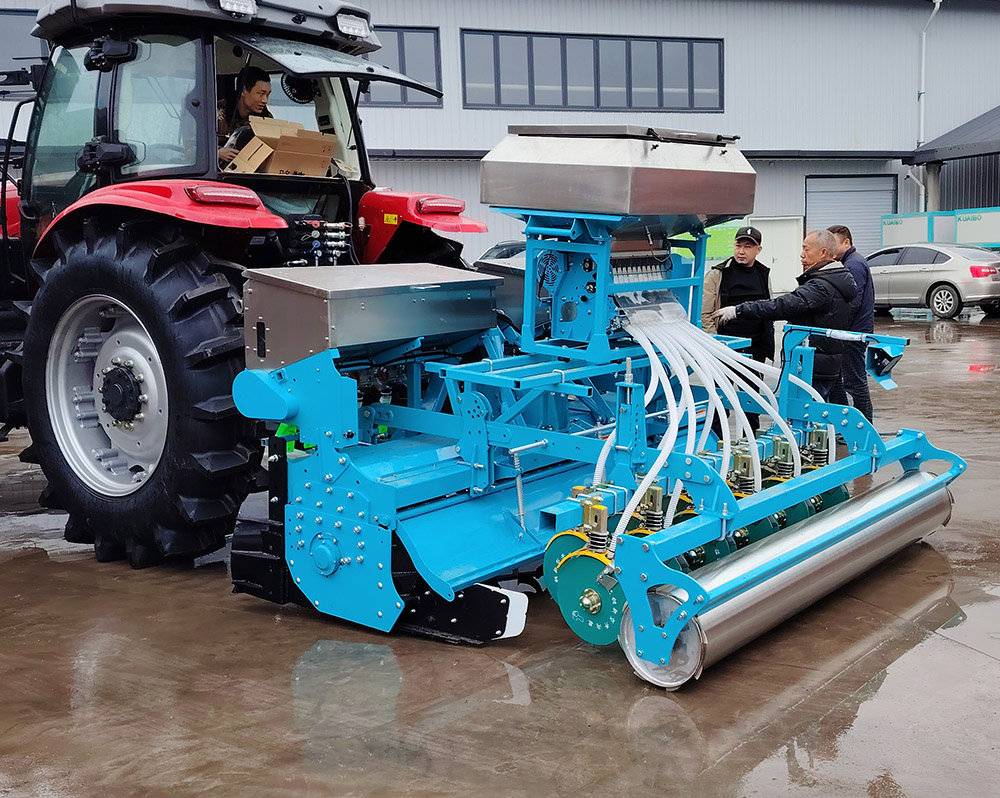

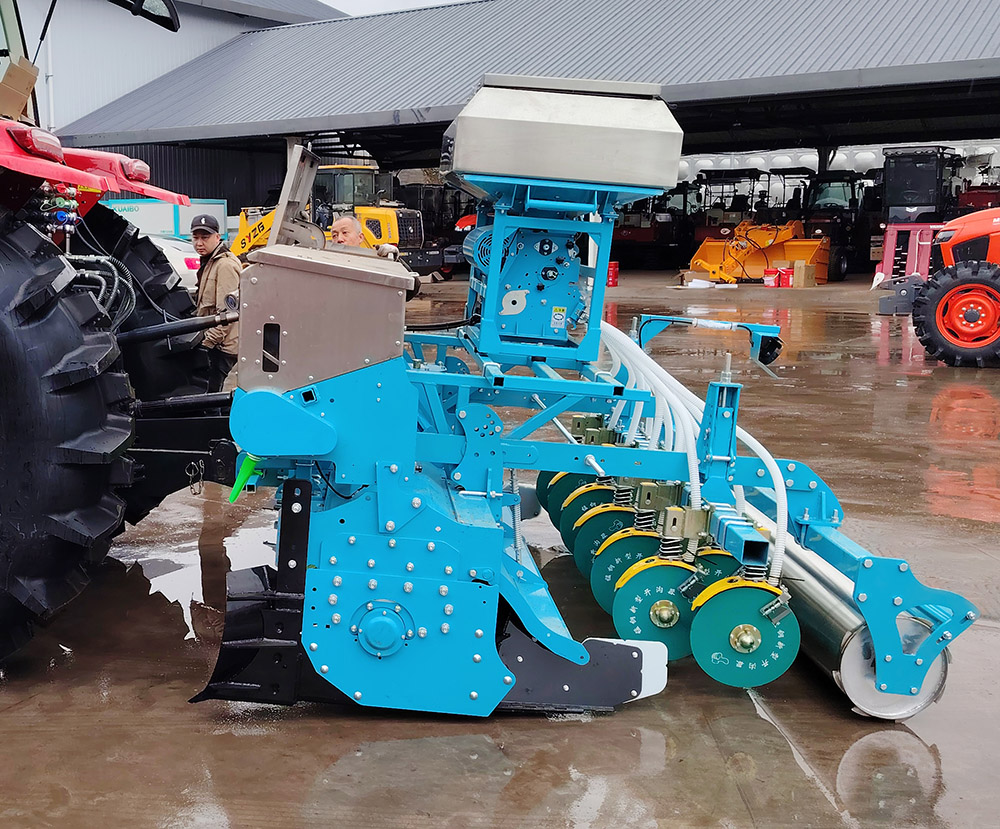

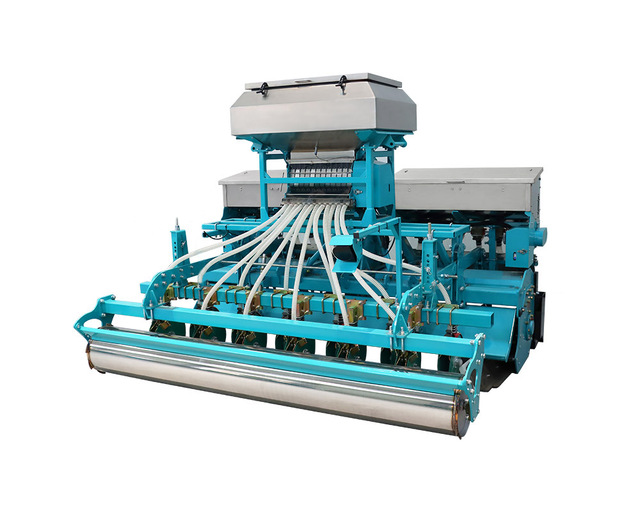

12 Rows Seeding Fertilizing Machine

Product Description

The 12 rows Seeding Fertilizing  Machine is perfectly suited for spreading all common types of small seeds, seed mixtures, and fertilizer. Support customization of your needs according to farmland conditions.



It offers a combined one 300L pneumatic seeder, 2*fertilizer box, Rotary Tiller with Plough, Disc Furrow Opener with 7 Levels lift Adjustment, and Farmland Roller. This allows farmers to utilise the optimal time for sowing and benefit from immediate erosion protection.



It uses radar speed measurement and centrol control system to accurately control the sowing and fertilizing amount. The pneumatic seeder with Intelligent tablet APP, central control system and radar sensor ensures seeds precise distribution to the farmland even in the windy condition. Using the electrically controlled metering shaft, the seed enters the air channel where it is conveyed by the blower fan to the ends through plastic hoses.



The fertilizer box is controlled by App application with radar senor to set the accurate fertilizer amount and save your material. The broadcast sowing ensures that your land have enough fertlizer for the seeds to grow better and increase your yields.


A large selection of seed hopper sizes, seed roller and seed rows allow us to offer you a customized solution for every need and budget, and to save seeds and fertilizer volume and labor cost.



Seeding Fertilizing Machine Assembly
Seed Rows1-12 Outlets
Fertilizer Rows1-8/1-10 Outlets Optional
Smart Tablet with YongXiang APP10 inches
Seeder Hopper100/300/600L
Fertilizer Hopper2*130L/2*155 L
Radar SensorYes
Seed Roller

12 Rows: Rice, Wheat, Soybean

Sorghum, Green Corn, Fertilizer, Grass seed. etc

Fertilizer RollerFertilizer
Rotary Tiller2/2.3/2.5m Optional
Disc Furrow Opener12 pcs
Land Roller2/2.3/2.5m, Iron/Stainless Steel Optional
PloughYes
Battery CableYes

Hydraulic Folding Oil Cylinder

Optional
Disc Furrow Depth Adjustment(10cm)

Hand Cranked Lift Jack(0-100)

or Simple 7 level Lift Device

Seed Electric ScaleYes
Seed Weight Calibration BagYes





Specification
Seed Rows12 Rows12 Rows12 Rows
Fertilizer Rows8 Rows 10 Rows 10 Rows
Seed Hopper Volume:300L300L300L
Fertilizer Box Volume2*130L2*155L2*130L
Working Width2m2.3m2.5m
Horse Power58.82-66.18 KW73.5-95.6 KW88.2-110.3 KW
Structural Type:3-Point Suspension3-Point Suspension3-Point Suspension
Size:

2350*2200*1900mm

2350*2546*1900mm

2350*2745*1900mm

Working Area/Hour0.4-1.2 hm²/H

0.46-1.35 hm²/H

0.5-1.5 hm²/H

Cultivation Deepth8-16 cm8-16 cm12-18 cm
Seed Row Spacing Adjustable15-30 cm15-30 cm15-30 cm
